| Place of Origin | Guangdong, China |
| Brand Name | Ridstar |

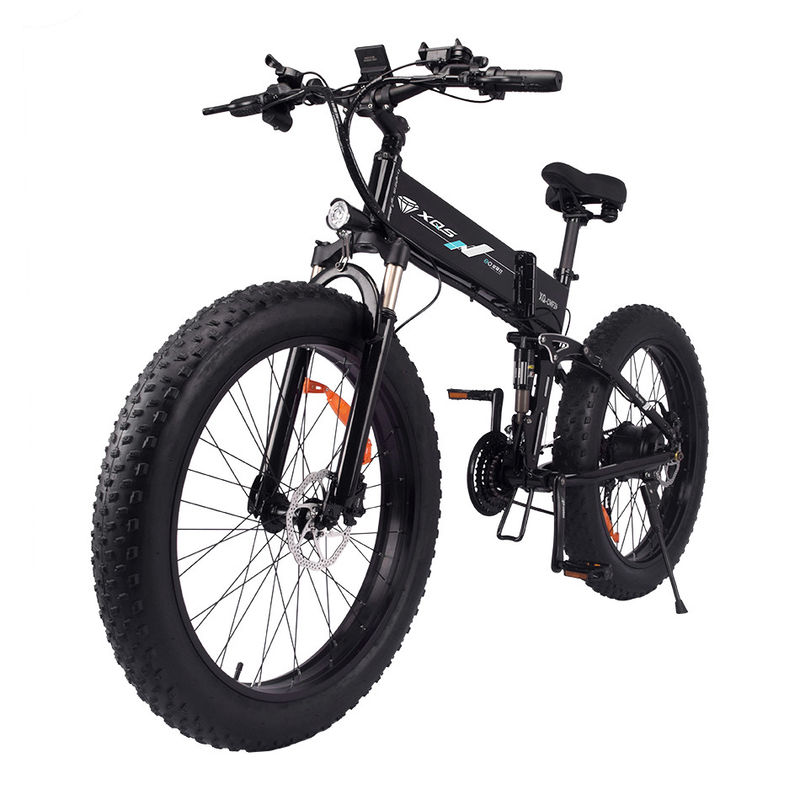

fat tire folding electric bike large fork fat tire 26" wheel full suspension 14ah/ 48v lithium battery 750w/48v motor f
|
Wheel Size:
|
26"
|
|
|
Color:
|
BlackBlue White or as requests
|
|
|
Net Weight:
|
31kg
|
|
|
Frame:
|
6061 aluminum alloy full suspension folding frame
|
|
|
Handelbar Sets:
|
6061 aluminum alloy,30.8*635mm
|
|
|
Fork:
|
Aluminum Alloy Hydraulic Suspension Fork
|
|
|
Shifting Lever:
|
Shimano TZ500-7
|
|
|
Rear Derailleur:
|
Shimano TZ500
|
|
|
Cranksets:
|
Prowheel Aluminum crank square hole 52T
|
|
|
Freewheel:
|
Shimano TZ500-7
|
|
|
Chain:
|
KMC 7s
|
|
|
Brake:
|
hydraulicl disc brake with power cut off feature
|
|
|
Wheel
|
spoke AlloyOne-piece Wheel 26"
|
|
|
Tire:
|
KENDA 26*4.00
|
|
|
Electric configuration:
|
|
|
|
Riding mode:
|
PAS mode (5 Shifts) Range 150KM
|
|
|
|
Pure Human Riding
|
|
|
|
Pure electric mode (5 Shifts) Range 90KM
|
|
|
Maximum speed:
|
≤25km/h, ( can be set faster as customer required )
|
|
|
Front light
|
LED Powered by battery
|
|
|
Max Load:
|
150kg
|
|
|
Battery:
|
48V 14Ah LG-18650 Lithium battery Or Samsung or Panasonic
|
|
|
|
( can be changed as customer required )
|
|
|
Charger:
|
Overvoltage,Overcurrent Protection,etc.
|
|
|
Motor:
|
rear drive 48v 750w/1000w brushless Bafang , waterproof rating IP54
|
|
|
|
( can be changed to more powerful motor as customer required )
|
|
|
LCD Display
|
OMT-S700 LCD Data display function, setting function: Waterproof rating: IP54
|
|
|
Power assist Sensor :
|
KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54
|
|
|
Controller
|
7 Shifts intelligent control system
|
|
|
Wire connector:
|
All cables are Waterproof Integrated wires
|
|
