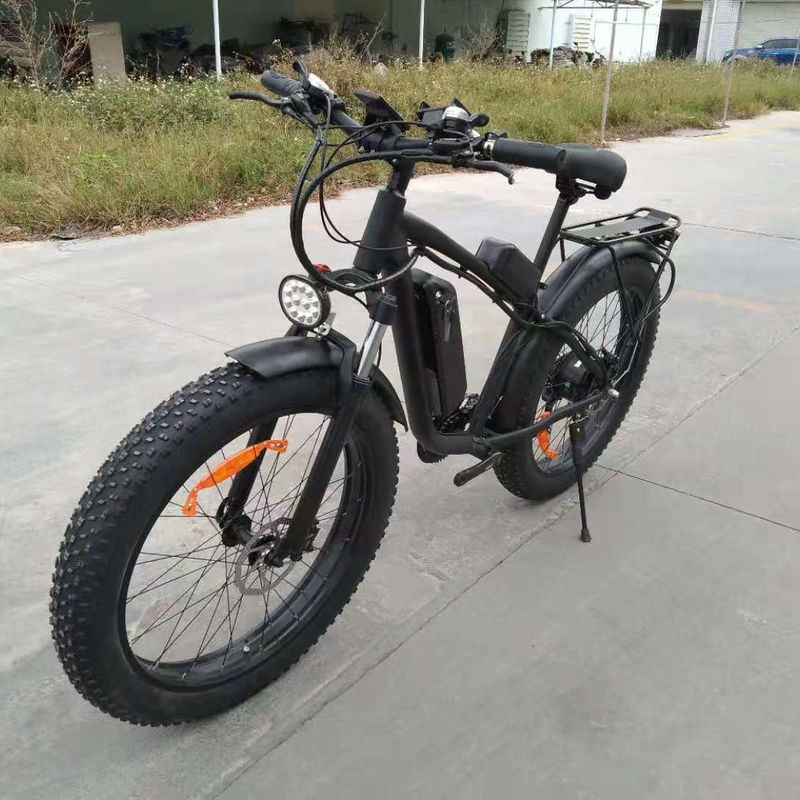

Fat Tire Electric Mountain Bike
>
|
| Place of Origin | Guangdong,China |
| Brand Name | Ridstar |
|
model
|
XQS -UNCCM2640
|
|
|
Frame size
|
26"
|
|
|
Color:
|
Black Blue Whit
e Army Green or as requests |
|
|
Net Weight:
|
31kg
|
|
|
Frame:
|
6061 aluminum alloy full suspension folding frame
|
|
|
Handelbar Sets:
|
6061 aluminum alloy,30.8*635mm
|
|
|
Fork:
|
Aluminum Alloy Hydraulic Suspension Fork
|
|
|
Shifting Lever:
|
Shimano TZ500-7
|
|
|
Front Derailleur
|
Shimano TX50
|
|
|
Cranksets:
|
Prowheel Aluminum crank square hole 52T
|
|
|
Freewheel:
|
Shimano
|
|
|
Chain:
|
KMC 7s
|
|
|
Brake:
|
Disc Brakes XD-E500 Hydraulic with power cut off feature
|
|
|
Wheel
|
Magnesium Alloy One-piece Wheel or spoked
|
|
|
Tire:
|
KENDA 26“*4.0
|
|
|
Electric configuration:
|
|
|
|
Riding mode:
|
PAS mode (5 Shifts) Range 130-140KM
|
|
|
|
Pure Human Riding
|
|
|
|
Pure electric mode (5 Shifts) Range 70-80KM
|
|
|
Maximum speed:
|
≤25km/h, ( can be set faster as customer required )
|
|
|
Front light
|
LED Powered by battery
|
|
|
load:
|
180kg
|
|
|
Battery:
|
48V 13 Ah 18650 Lithium battery LG or Samsung or Panasonic
|
|
|
|
( can be changed as customer required )
|
|
|
Charger:
|
Over voltage,Over current Protection,etc.
|
|
|
Motor:
|
rear drive 48v 1000w brushless Bafang RM G062, waterproof rating IP54
|
|
|
|
( can be changed to more powerful motor as customer required )
|
|
|
LCD Display
|
M5 LCD Data display function, setting function. Waterproof rating: IP54
|
|
|
Power assist Sensor :
|
KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54
|
|
|
Controller
|
5 Shifts intelligent control system
|
|
|
Wire connector:
|
All cables are Waterproof Integrated wires
|
|
