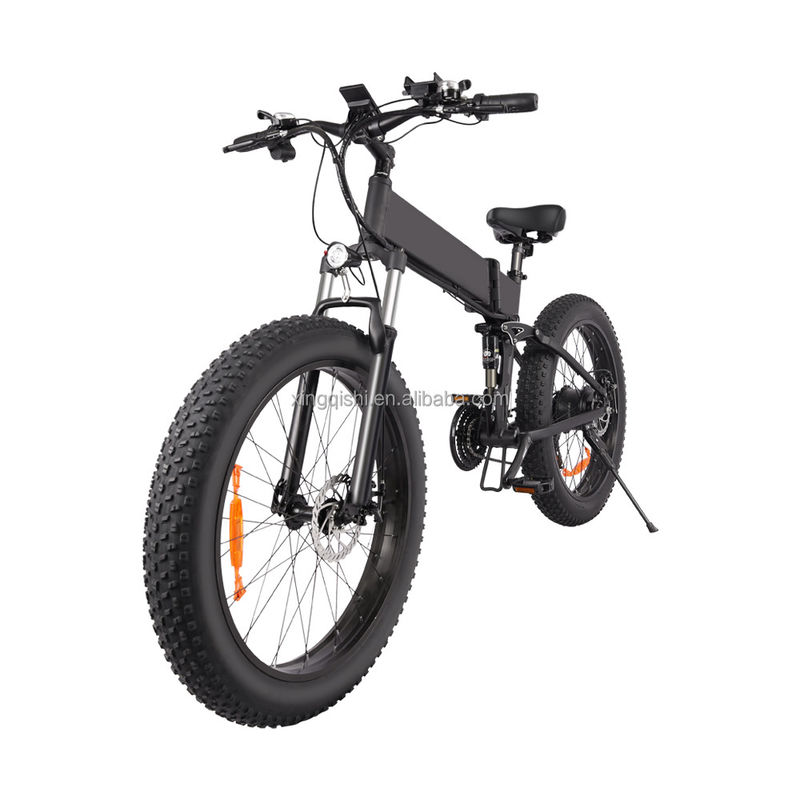

Folding Electric Mountain Bike
>
|
| Place of Origin | Guangdong, China |
| Brand Name | Ridstar |
| Model Number | 26-HM |
|
Model:
|
XQS-CC26PLUS
|
|
|
Wheel Size:
|
26"
|
|
|
Color:
|
Black Blue White ArmyGreen or as requests
|
|
|
Net Weight:
|
32kg
|
|
|
Frame:
|
6061 aluminum alloy full suspension folding frame
|
|
|
handelbar Sets:
|
6061 aluminum alloy30.8*635mm
|
|
|
Fork:
|
Aluminum Alloy Hydraulic Suspension Fork
|
|
|
Shifting Lever:
|
Shimano TZ500-7
|
|
|
Rear Derailleur:
|
Shimano TX500 Front Derailleur Shimano TX50
|
|
|
Cranksets:
|
Prowheel Aluminum crank square hole 52T
|
|
|
Freewheel:
|
Shimano 14T-34T
|
|
|
Chain:
|
KMC 7s
|
|
|
Brake:
|
Hydraulic disc brake with power cut off feature
|
|
|
Wheel
|
Spoked Wheel 26"
|
|
|
Tire:
|
KENDA or CHAOYANG 26*4.00
|
|
|
Electric configuration:
|
|
|
|
Riding mode:
|
PAS mode(5 Shifts)Range120KM
|
|
|
|
Pure Human Riding
|
|
|
|
Pure electric mode(5 Shifts)Range 80KM
|
|
|
Maximum speed:
|
≤25km/h(can be set faster as customer required)
|
|
|
Front light
|
LED Powered by battery
|
|
|
Max Load:
|
150kg
|
|
|
Battery:
|
48V 14 Ah LG Panasonic or Samsung-18650 Lithium battery
|
|
|
|
( can be changed as customer required )
|
|
|
Charger:
|
Overvoltage.Overcurrent Protection.etc.
|
|
|
Motor:
|
rear drive 48v 1000w brushless Bafang RMG62waterproofratingIP54
|
|
|
|
( can be changed to more powerful motor as customer required )
|
|
|
LCD Display
|
OMT-S700 LCD Data display functionsetting function:Waterproof rating
IP54 |
|
|
Power assist Sensor :
|
KDS Left-load 12-point Holzer-intensive speed sensor Waterproof:IP51
|
|
|
Controller
|
5 Shifts intelligent control system
|
|
|
Wire connector:
|
All cables are Waterproof Integrated wires
|
|
