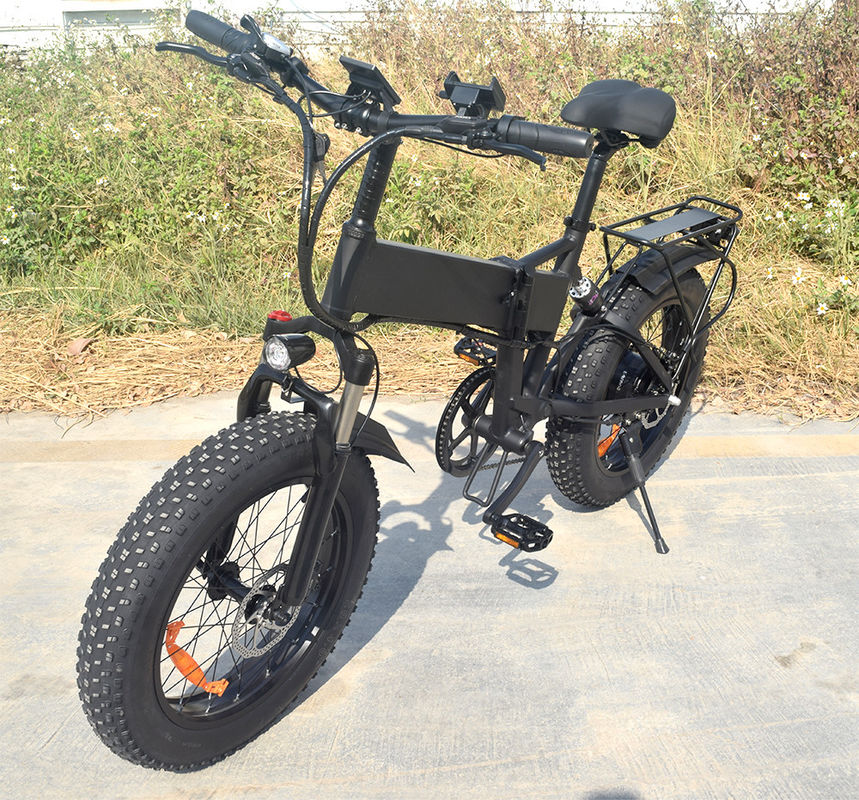

Luxury 750W Folding Fat Tire Electric Bike 20inch Wheel Full Suspension

Model:

Frame size

20"

Color:

Black Blue White  Army Green or as requests

Net Weight:

26kg

Frame:

6061 aluminum alloy full suspension folding frame

Handelbar Sets:

6061 aluminum alloy,30.8*635mm

Fork:

Aluminum Alloy Hydraulic Suspension Fork

Shifting Lever:

Shimano M310

Front Derailleur

Shimano TY300

Rear Derailleur:

Shimano RD-TZ500, TZ, GS 7-SPEED

Cranksets:

Prowheel Aluminum crank square hole 52T

Freewheel:

Shimano TZ500 7speed 14-34t

Chain:

KMC 7s

Brake:

ZOOM HB875 Hydraulic disc brake with power cut off feature

Wheel

 spoked 20"x4.00

Tire:

KENDA or  Chaoyang  20*4.0

Electric configuration:

Riding mode:

PAS mode (5 Shifts) Range 150-170 KM

Pure Human Riding

Pure electric mode (5 Shifts) Range 80-90KM

Maximum speed:

≤25km/h, ( can be set faster as customer required )

Front light

LED Powered by battery

load:

150kg

Battery:

48V 14 Ah 18650 Lithium battery  LG or Samsung

( can be changed as customer required )

Charger:

Over voltage,Over current Protection,etc.

Motor:

rear drive 48v 500-1000w brushless, waterproof rating IP54

( can be changed to more powerful motor as customer required )

LCD Display

OMT-S700 LCD Data display function, setting function: Waterproof rating: IP54

Power assist Sensor :

KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54

Controller

5 Shifts intelligent control system

Wire connector:

All cables are Waterproof Integrated wires
