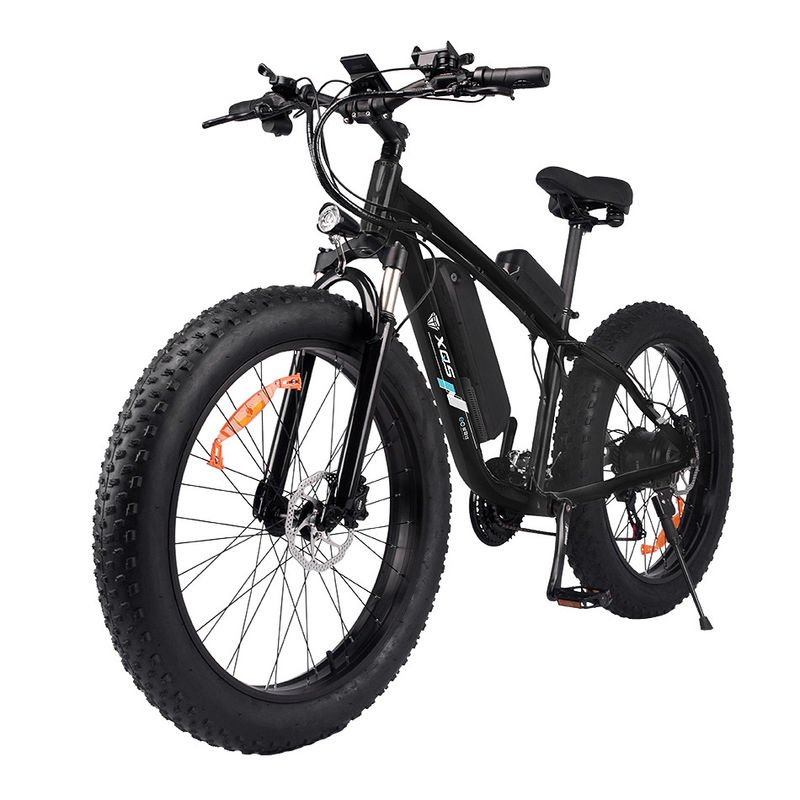

13ah 48v Lithium Battery 26 Inch Electric Bike With Hydraulic Suspension Fork

model

XQS -UNCCM2640

Frame size

26"

Color:

Black Blue Whit

e  Army Green or as requests

Net Weight:

31kg

Frame:

6061 aluminum alloy full suspension folding frame

Handelbar Sets:

6061 aluminum alloy,30.8*635mm

Fork:

Aluminum Alloy Hydraulic Suspension Fork

Shifting Lever:

Shimano

Front Derailleur

Shimano

Cranksets:

Prowheel Aluminum crank square hole 52T

Freewheel:

Shimano

Chain:

KMC 7s

Brake:

Disc Brakes XD-E500 Hydraulic with power cut off feature

Wheel

 spoked

Tire:

KENDA 20*4.0

Electric configuration:

Riding mode:

PAS mode (5 Shifts) Range 130-140KM

Pure Human Riding

Pure electric mode (5 Shifts) Range 70-80KM

Maximum speed:

≤25km/h, ( can be set faster as customer required )

Front light

LED Powered by battery

load:

180kg

Battery:

48V 13 Ah 18650 Lithium battery LG or Samsung or Panasonic

( can be changed as customer required )

Charger:

Over voltage,Over current Protection,etc.

Motor:

rear drive 48v 1000w brushless Bafang RM G062, waterproof rating IP54

( can be changed to more powerful motor as customer required )

LCD Display

M5 LCD Data display function, setting function. Waterproof rating: IP54

Power assist Sensor :

KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54

Controller

5 Shifts intelligent control system

Wire connector:

All cables are Waterproof Integrated wires
